Precision-machined
10,000 psi Float Valves
Valves and Repair Kits

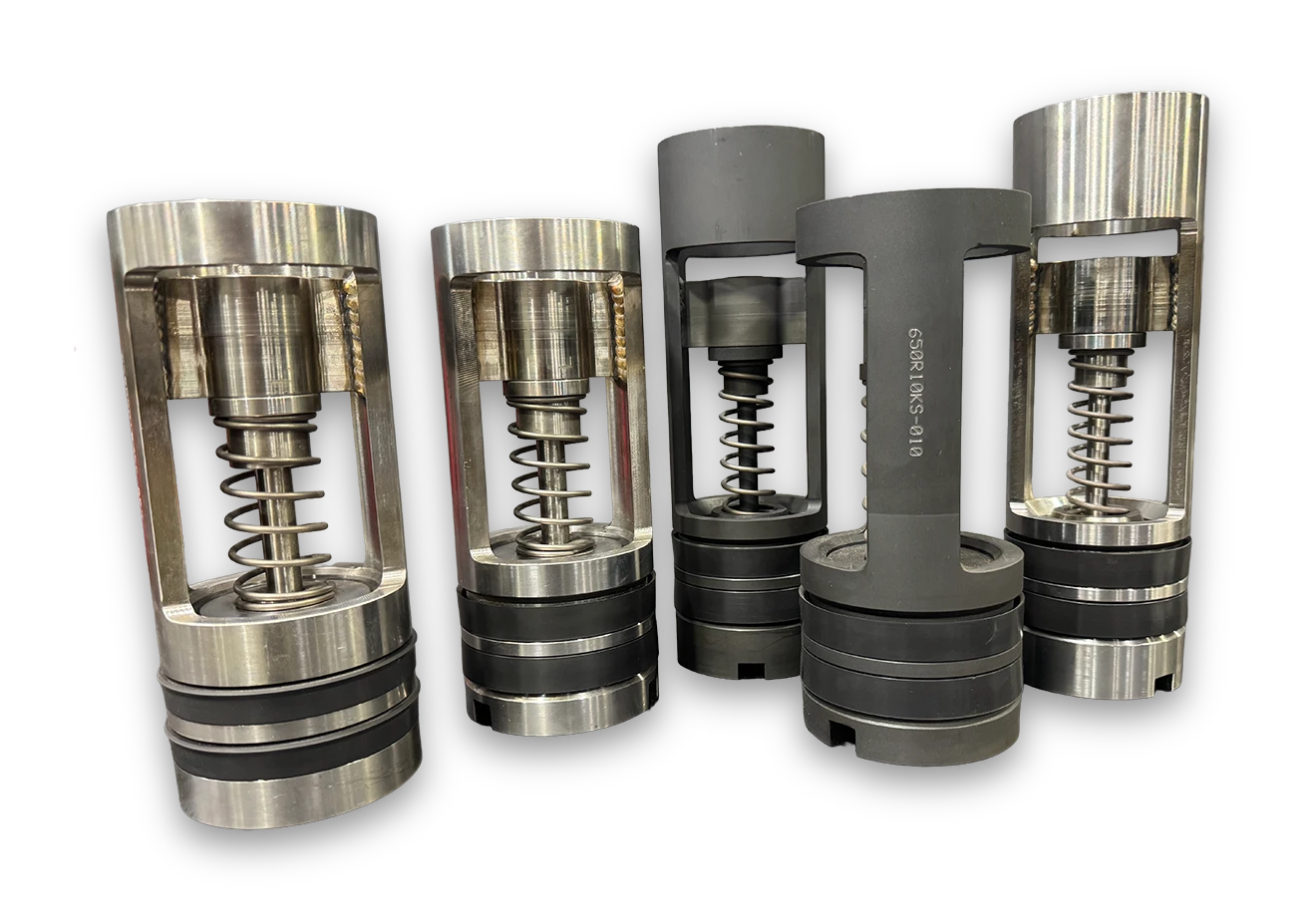

Model F 10K: Built for higher pressure
RoNal Model F 10K float valves are CNC-machined in 4140HT and 17-4 stainless for higher pressure conditions. These valves provide continuous fluid flow, and instantaneous shut off when pumps are shut down.
Specifications
Engineered for H2S and high-temperature service
Every Model F 10K valve is machined in our Texas shop to the same standards as our standard-pressure line, with materials and seals selected for demanding downhole conditions.
- 100% 4140HT or 17-4 Stainless Steel Cage and Components.
- Viton Seals for H2S / High Temperature Conditions.
- Heavy Duty Stainless Steel Springs.
- 4140-HT Bodies and parts are zinc phosphate coated for corrosion.
- Valves are serialized and shipped with pressure test reports.
- All valves are shipped showing material heat numbers as well as batch and cure date for seals.

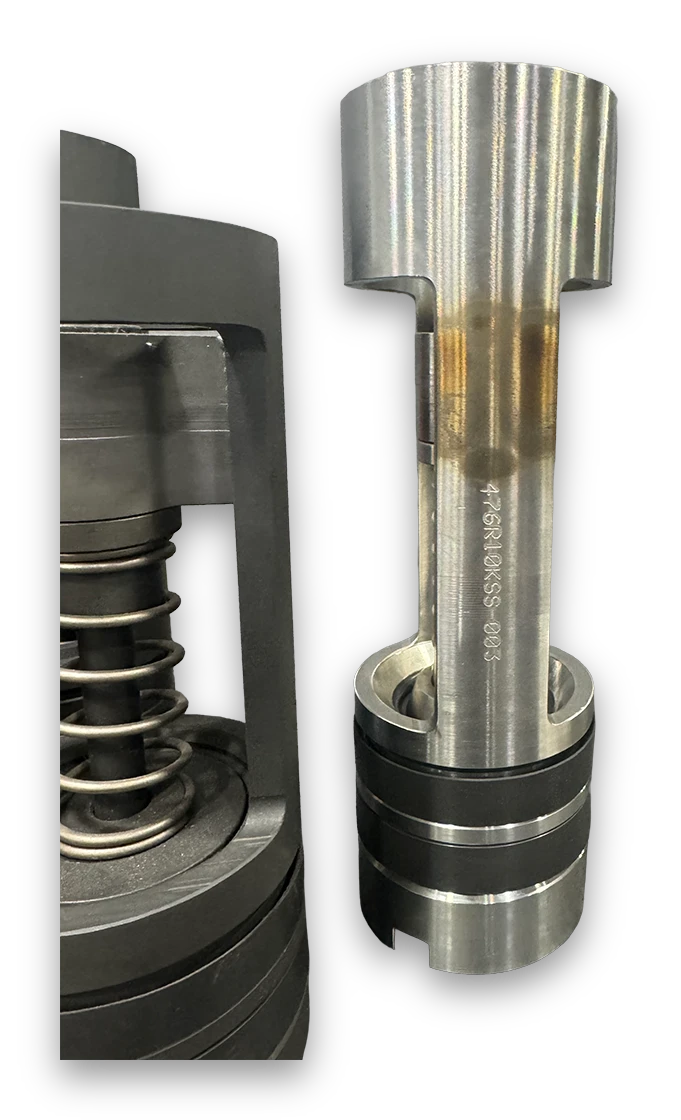

Serialized. Pressure-tested. Documented.
Each Model F 10K valve carries its own serial number and ships with a pressure test report, material heat numbers, and the batch and cure date of its seals — so you know exactly what is going downhole.
Need 10K float valves for your next job?
Tell us the size and service conditions and we will get you a quote. Repair kits are available for every size we build.
